ALARM RECEIVING CENTER INTEGRATION SOLUTION
Flexible Upgrades to Streamline and Enhance Service
Roombanker’s ARC integration solution offers a number of ways to connect to an ARC, providing enhanced services remotely, using innovative, scalable technology.
Connecting Roombanker to ARC/CRM Monitoring Software
For business partners, we support integrating Roombanker wireless security alarm system with the ARC/CRM center, enabling flexible upgrades to enhance services, allowing you to provide customers with superior security services.

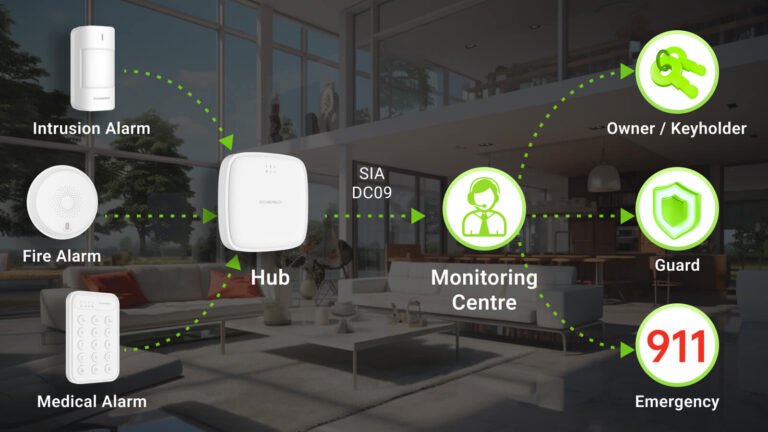

Cloud-Based Transmission:
The home security hub transmits data in MQTT format to the cloud server. The server then converts this information into ARC’s proprietary DC 09 protocol and transmits it to the ARC platform.
Direct Transmission to IP Receiver with Protocol Conversion:
The home security hub sends data in DC 09 format directly to the IP receiver. The IP receiver acts as an intermediary, converting the DC 09 format into ARC’s specific protocol or MRL2000 standard protocol. The converted data is then sent to the ARC platform for processing.
Direct Protocol Conversion:
The home security hub sends data in DC 09 format directly to ARC’s protocol converter. The protocol converter translates the data into ARC’s internal language and sends it directly to the ARC platform for real-time monitoring.
API Documentation
Roombanker SlA Codes
lP Receiver Instructions

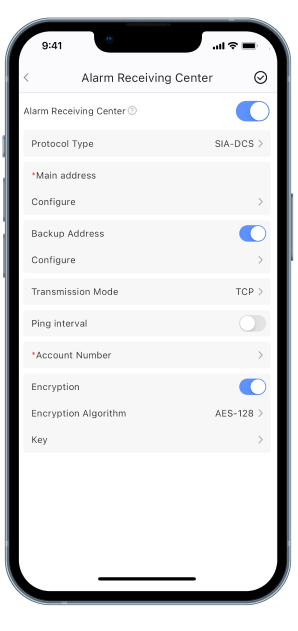

How to Set Up Alarm Receiving Center on RB-Link Security Alarm App
Once you subscribe to the Alarm Receiving Center (ARC) service, your installer or the ARC will provide you with the necessary information, as shown in the image. After entering and saving this information, your ARC service will be activated. Any alarm triggered in your home will be immediately reported to the ARC.
Parameter | Meaning |
---|---|
Protocol Type | SIA or CID |
Main Address | Primary IP Address & Port: (Required) |
Backup Address | Secondary IP Address & Port: (Optional) |
Transmission Mode | TCP or UDP |
Ping Interval | Heartbeat Interval: (Optional, configurable if enabled) |
Account Number | Assigned by ARC |
Encryption | AES-128, AES-192, or AES-256 with corresponding key (Optional) |
ARC/CRM Center with integrated Roombanker Security Alarm System
MCDI is still doing Alarm Receivers and Monitoring Software like it did back in 1994 when founded in Montreal Canada. Our mission is to help you start a Central Station (Alarm Receiving Centre) or to help you grow by providing the best equipments and software applications.
- Canada
- India
- Brasil
- Portugal
- Angola
- Moçambique e Cabo Verde
- Albania
- Armenia
- Austria
- Bosnia
- Bulgaria
- Croatia
- Czechia
- Georgia
- Macedonia
- Serbia
- Slovakia
- and more
Patriot is the most advanced Central Station Software package available incorporating the latest software technologies to deliver an extensive and seamless alarm automation system that offers power, flexibility, reliability and ease of use. Patriot’s development team responds rapidly to market requirements, providing a package that is both stable and evolving its feature set.
- Australia
- Canada
- Chile
- Colombia
- UK
- Greece
- Honduras
- India
- Poland
- Japan
- Luxembourg
- New Zealand
- Belgium
- Norway
- Pakistan
- Philippines
- Moldovia
- South Africa
- Sri Lanka
- Suriname
- Malaysia
- Thailand
- the USA
2016 yılının Ocak ayından itibaren AKM Merkezi Alarm izleme Sistemleri A.Ş. olarak hizmet vermektedir. AKM Merkezi Alarm izleme Sistemleri, 27000’i aşkın abonesinden oluşan portföyü ile birçok seçkin kuruluş ve şahsı 7/24 kesintisiz olarak izlemekte ve onları güven ağı içine almaktadır. AKM Merkezi Alarm izleme Sistemleri kullandığı yazılımı kendi AR-GE departmanında geliştirmiş ve Türkiye genelinde 1100’ü aşkın çözüm ortağı ile abonelerinin beklentisine uygun kaliteli hizmet anlayışını benimsemiştir
- Türkiye
Lion Technology Dış Ticaret A.Ş.; 25 yıllık bilgi birikimi ve kurum tecrübesi ile kurulduğu günden bugüne kadar geçen süre zarfında; analiz yazılım sistemleri başta olmak üzere güvenlik alanında öncü ürünleriyle, şehir güvenlik yönetimi, kamera güvenlik/zayıf akım sistemleri, plaka/yüz tanıma sistemleri, geçiş kontrol/engel sistemleri, kişi sayma, dashboard raporlama ekranı, alarm pop-up ile sesli ve görsel uyarı sistemi, benzersiz sanal çit uygulamaları ile yazılım üzerine her türlü güvenlik çözüm önerileri ile hizmet vermektedir.
- Türkiye
Enigma Security Solutions is a leading national security company. We specialise in delivering a highly personalised and focused range of security services throughout the United Kingdom. Our guarding services business has a reputation for high-quality customer service, putting our clients first, and providing bespoke solutions. Our dedicated CCTV division is amongst the largest providers of trained, permanent staff to Public Space CCTV Control Rooms throughout the UK, working hand in hand with a variety of Police Forces and Local Authorities nationally.
- United Kingdom
